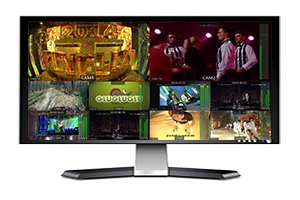

Magic Mirror, the multiview processor, is capable of controlling up to 4 Decklink Quad2 Input boards for up to 32 HD SDI inputs and 4 port outputs, supporting up to 4 x 4K output

Inputs can be HD-SDI, IP or Newtek’s NDI

Each source window can display sound level (embedded sounds, up to 16 bar graphs, user selectable)

The standard license includes operation for 4 Input / 1 Output Channels. Additional channels are optional

Key advantages:


• Works seamlessly with DeckLink boards
• Low latency for real-time monitoring
• Easy to scale and configure
• Affordable without sacrificing performance

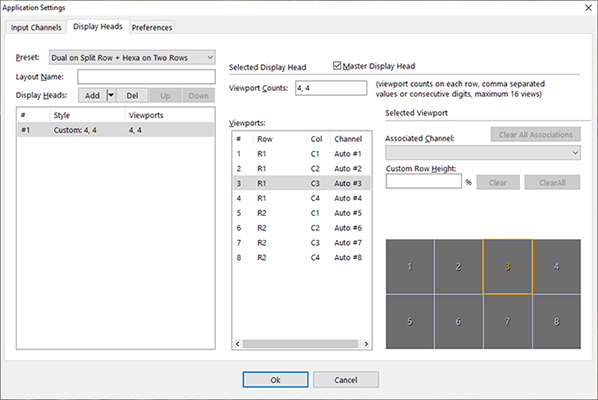

Various editable layouts can be assigned for each output.

Magic Mirror provides a comprehensive set of tools able to:

• Design and create layouts of "Sources" in any output
• Import, export, save, and recall libraries
• Manage and edit resources easily
• Organize multiple views

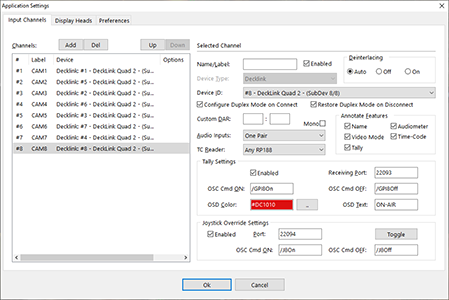

• Set up tally and input source information

Each source window can display the sound level (for the embedded sounds, up to 16 bar graphs, user selectable)

Additionally, each source window can show tally and UMD text messages

Tally signals can be received via OSC messages for a remote installed server far from the Vision Mixer

The optional GPI Tally server reads from a Contec Digital I/O board and converts GPI signals to OSC™ messages, sending them over an IP network to the Magic Mirror system.

Our software products are fully compatible with Blackmagic Design's capture and playback cards, including the DeckLink series. This ensures seamless integration in professional video environments and access to high-quality standards in broadcast and post-production workflows
Supported Blackmagic Design Cards

• DeckLink Series (PCIe)
• DeckLink Quad 2
• Decklink Duo 2
• DeckLink 8K Pro G2
• DeckLink Mini Recorder 4K
• Older Decklink boards with drivers starting from 10.xx

All DeckLink PCI Express (PCIe) cards work in Windows-based workstations and servers, offering excellent flexibility for deployment.

Compatible Operating Systems
Windows: Windows 7, Windows 8, Windows 10, Windows 11

Compatible Video and Audio Standards

• SD, HD, Ultra HD, 4K video formats
• SDI, HDMI, Analog Component, S-Video, Composite connections
• 16 channels of audio input/output
• Blackburst sync input, tri-sync HD input

Connectivity Highlights

• SDI and HDMI outputs for monitors, broadcast decks, projectors, and video equipment.
• Support for older video devices via component analog, S-Video, and composite connections (various DeckLink models)
• Versatile PCIe slot compatibility: Compatible with both 8- and 16-lane PCIe slots, ensuring installation in most modern workstations

In summary:
Using Blackmagic Design DeckLink cards, our software will work on Windows systems and integrate smoothly with leading video, audio, visual effects, and streaming workflows. Both professional and consumer-grade equipment connections are supported, and developer resources are available for custom solutions.
