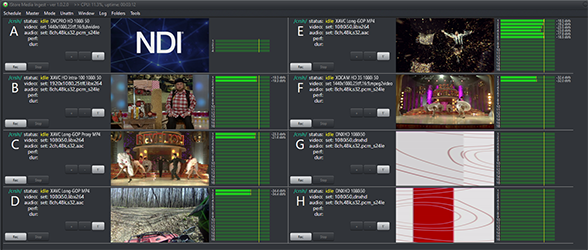

iStore MR can record video and audio signals from Blackmagic Design Decklink cards or from NDI IP streams

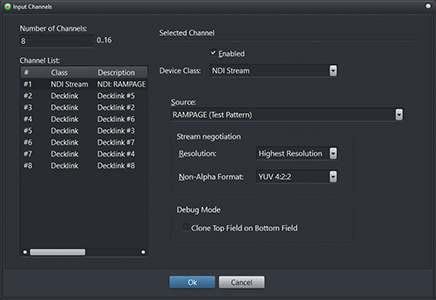

Input channels are independent from the Recording channels

• This allows independent video standard/pixel format audio format or frame rate for different recording channels feeding from the same independent Input channel (possible application is to record simultaneously UHD, HD and proxy)
• Frame synchronizer video and audio software modules are built-in. They allow the processing of the signal when frame size/frame rate modification are needed

Open Recordings (loop mode) generate overlapping segments for perfect cut

Frame processing options for Input channels having a different aspect ratio than the recording channel

Audio can be recorded as on multi-channel stream or independent audio streams for each audio channel

iStore MR can ingest the same video simultaneously in two folders (option)

SDI or NDI 4K/HD/SD, 8bit or 10 bit, video signals can be encoded in real time in broadcast formats, such as:

• Apple ProRes (LT, normal, HQ, proxy),
• Avid DNxHD 145 and 220,
• Avid DNxHR (incl. HQX 10 bit),
• XAVC HD Intra,
• XAVC HD Long Gop,
• XAVC Long Gop 140M and 200M,
• XAVC Long Gop Proxy,
• XAVC UHD,
• XDCAM ED35,
• HDCAM HD35,
• XDCAM HD50 (with or w/o Trellis).
• DVCPRO HD 100 Mb/s
• MJPEG
• IMX
• Uncompressed

Selecting complex formats (such as uncompressed, 10-bit, 4K/UHD, or advanced broadcast codecs) for multichannel ingest places a heavy demand on computing resources.

Massive Computing Power Is Needed

• High Data Rates: Advanced video formats produce extremely large amounts of data, particularly with high resolutions (HD, 4K, or 8K) and multiple channels recorded in parallel.
• Codec Complexity: Modern codecs (like H.264 or H.265) and multi-format ingest features require intensive CPU or GPU processing, especially when real-time encoding or transcoding is performed.
• Disk Throughput: High sustained write speeds are needed to capture multiple streams without dropping frames, which means fast SSD or RAID arrays and robust bus architectures.

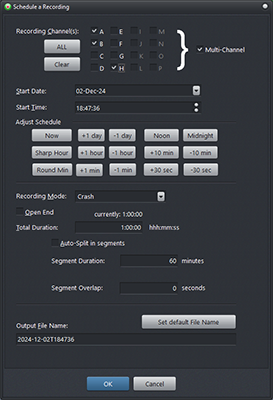

• Captures are time scheduled, remote triggered, or manually started (crash record), via per-channel events or as events for multicam recordings
• each channel has a default video standard (standard list is like in IStore PRO), and a default encoding format settings
• a channel can schedule an event to start recording in (the default or) a particular format, in a particular file name (w/o path and extension), at a given precise time (local computer time), and have a determined (maximum) duration
• a channel can schedule an event to start recording in (the default or) a particular format, in a particular file name, when receiving a particular trigger command
• a scheduled recording event can be instructed to stop upon receiving a particular per-event STOP command, and to cancel/drop the result upon receiving another particular per-event ABORT command
• a channel can be instructed to stop ANY recording event upon receiving a particular STOP command
• a channel can be instructed to cancel/drop ANY recording event upon receiving a particular ABORT command
• Split While Ingest: Broadcast recording systems often run continuously, producing large files over extended periods. Managing these sizable single files can be cumbersome and inefficient. iStoreMR allows operators to manually split recordings or configure automatic splitting when files reach a set duration. Additionally, users can specify an overlapping duration for segments to create seamless transitions and ensure no frames of the incoming video are missed. Precise alignment is maintained using time code embedded within the recordings. This functionality significantly simplifies file management and enhances overall workflow efficiency
• Edit While Ingest: iStoreMR supports growing files, allowing editors to start working on the recording immediately after the ingest process begins. Whether using Adobe Premiere, DaVinci Resolve, GV Edius, or any compatible editing software, users can access and edit the file while it is still being recorded

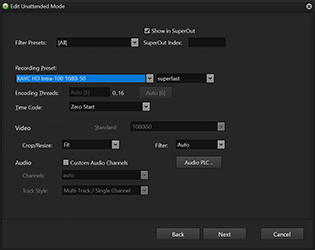

• Unattended Mode in iStore MR offers seamless continuous loop recording within a dedicated storage space
• It intelligently segments recordings into customizable time intervals €”set by default to one hour €”and names each segment with a date/time stamp for effortless organization and retrieval
• As the storage approaches capacity, the system automatically frees up space by deleting the oldest segments, ensuring uninterrupted recording

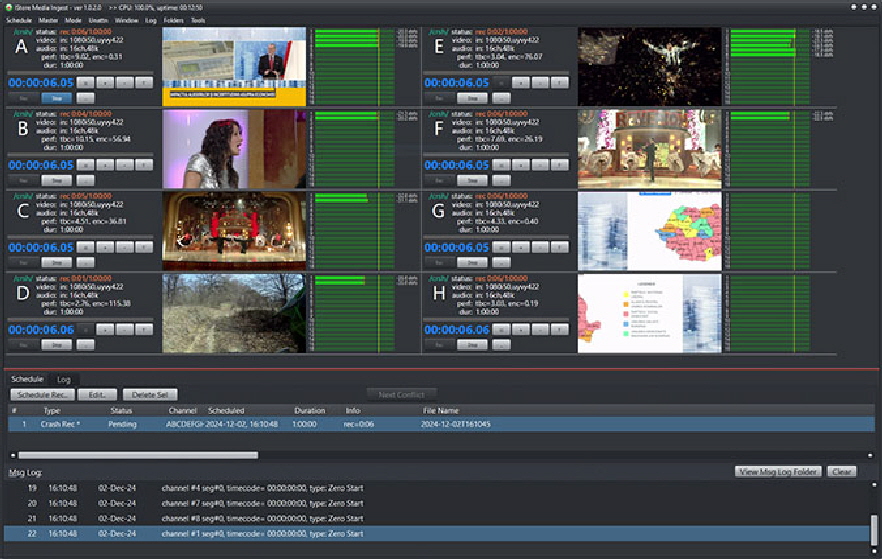

• The iStore Media Recorder supports up to 32 inputs in 4K, HD, or SD formats via SDI or NDI, capturing video and audio in broadcast quality with time code and up to 16 audio channels per video
• Additionally, each video signal can be recorded simultaneously at multiple resolutions and bitrates, perfect for combining high-resolution monitoring with low-resolution compliance recording
• If your ingest workflow involves complex, high-bandwidth formats for multiple simultaneous channels, substantial server-class computing resources are essential. Blackmagic Design's multi-input Decklink boards can be a core part of such systems, but successful deployments must prioritize robust CPU/GPU performance, fast storage, high PCIe bandwidth, and professional software for real-time management and error-free, continuous operation

Our software products are fully compatible with Blackmagic Design's capture and playback cards, including the DeckLink series. This ensures seamless integration in professional video environments and access to high-quality standards in broadcast and post-production workflows
Supported Blackmagic Design Cards

• DeckLink Series (PCIe)
• DeckLink Quad 2
• Decklink Duo 2
• DeckLink 8K Pro G2
• DeckLink Mini Recorder 4K
• Older Decklink boards with drivers starting from 10.xx
• UltraStudio HD Mini, 4K Mini, Media Player 10G

All DeckLink PCI Express (PCIe) cards work in Windows-based workstations and servers, offering excellent flexibility for deployment.

Compatible Operating Systems
Windows: Windows 7, Windows 8, Windows 10, Windows 11

Compatible Video and Audio Standards

• SD, HD, Ultra HD, 4K video formats
• SDI, HDMI, Analog Component, S-Video, Composite connections
• 16 channels of audio input/output
• Blackburst sync input, tri-sync HD input

Connectivity Highlights

• SDI and HDMI outputs for monitors, broadcast decks, projectors, and video equipment.
• Support for older video devices via component analog, S-Video, and composite connections (various DeckLink models)
• Versatile PCIe slot compatibility: Compatible with both 8- and 16-lane PCIe slots, ensuring installation in most modern workstations

In summary:
Using Blackmagic Design DeckLink cards, our software will work on Windows systems and integrate smoothly with leading video, audio, visual effects, and streaming workflows. Both professional and consumer-grade equipment connections are supported, and developer resources are available for custom solutions.
